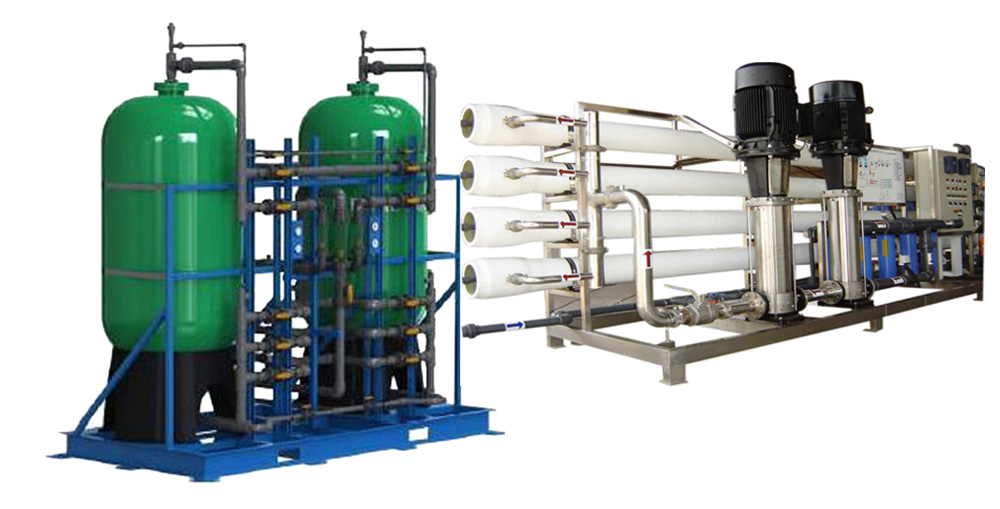

R.O. Plant
We manufacture and supply R. O. Plants those can treat water from any source, ground water, brackish water, mining water, treated water from STPs & ETPs etc. of any capacity with high recovery using versatile membranes as need be for both domestic, commercial & industrial applications. As a part of ZLD we supply UF system that precedes RO to remove suspended solids enabling RO membranes serve their maximum life.
The Advance water purification treatment installed for removal of dissolved salts during the process when the high pressure is exerted using high pressure pump to pass the water from the semi-permeable membrane leaving 90-95% of the dissolved salts behind in the reject stream.
Our domestic RO units are available at a highly competitive price with accessory to make R.O permeate alkaline. Annexing domestic R.O with with Ionizer under our brand name NANSHE provides healthy drinking water of innumerable benefits.
| Specifications | Principle role |
|---|---|
| Raw water Pump | Pressure generation for the system down the line |
| Pressure Sand Filter (PSF) | Suspended matters and turbidity removal |
| Activated Sand Filter (ACF) | Color, Odor, Chlorine, Oil and Grease removal |
| Micron Cartridge Filter (MCF) | Micron Sized Particles removal |
| Antiscalant Dosing System | Prevents membrane scaling (Hardness) |
| High Pressure Pump | To supply feed water to pass into RO system at high pressure of 10-12 kg/cm2. |
| Desalination System By Ro Membrane Element | To reject 90-95% of Total Dissolved Solids (TDS) |
| Ozonation & U.V. Systems | For disinfection and COD & BOD removal purpose |
| Electronic conditioner | Reduce the hardness. |
| Pure Water Tank | To store treated pure water |
